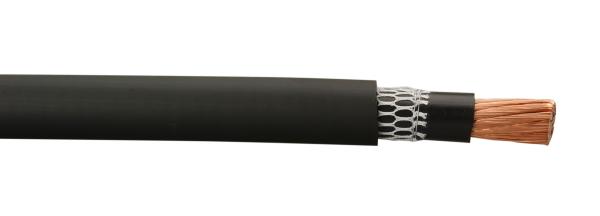

Type W Cable Single Conductor
Click to Enlarge
- Insulation is Ethylene Propylene Diene Monomer (EPDM) or Ethylene-propylene rubber (EPR) type EP
- Jacket is Black Super Vu Tron or CPE thermosetting compound
- 2000 Volt
- -40ºC to +90ºC
- 90ºC (UL) Type W 2000 Volt and Type RHH/RHW 600 Volt Portable Power Cable
- • Water-resistant • Sunlight-resistant • Designed to withstand severe environmental conditions • Withstands exposure to oil, acids, alkalies, heat, flame, moisture and chemicals • Meets or exceeds flame test requirements of MSHA and UL
- Used in Portable power systems and entertainment industry activities such as theatre, television, night clubs, motion pictures, mobile communication vans, spotlights and sound systems. Also used in other similar applications that would require permanent or temporary power, Permanent wiring of 600 Volt power supplies, hoists, cranes and other applications where flexible power leads must be installed in conduit or raceways
- Lengths cut to order.
- The ampacities listed are from the manufacturer and are provided for engineering information only. Maney Wire & Cable, Inc. cannot recommend or express the use of these ampacities since the exact application may need approval from the authority having local jurisdiction. All information is subject to engineering changes.
